huawei e160Tech Blog - I have been a subscription of Sun Broadband for couple of months now its a 3g Internet service in the Philippines, anyway with the subscription it came with a SIM and Huawei E160 3g USB modem dongle, the problem is I have couple of laptops that is running Mepis Linux and Ubuntu Linux as you might have known the program that came with the dongle doesn't work on Linux, another problem is that the Huawei E160 modem is quite unique as it act as a mass storage device like a flash disk which also one of the reason that Linux is having problem working with it.

This is a howto on getting the Huawei E160 modem to work on your Ubuntu and Mepis Linux or almost any Linux distribution, with this howto you are expected to have right to "root" priviledges, and you are expected to use the command for majority of this howto, a good undertsanding of shell command and basic scripting will also be very covenient for you int the long run, but is not a requirement lets begin.

What you will need:

libusb(developer) - You will need to make sure that libusb is installed on your Linux system, if your using Ubuntu or Mepis or Linux with Synaptic Package manager you can search and install libusb using it or use "apt-get" alternatively, you might also need to install libc++ in my case when I installed libusb it automatically installed libc++(developer) as dependencies, if your using rpm based Linux distri bution you might can search it using yum or up2date depends which one your using or you might want to download the tarball version or rpm version of it.

usb_modeswitch - You will need to download usb_modeswitch tarball package, this will be used to switch mode of your usb dongle from mass stroage mode to gsm modem mode, for you to connect to your carrier.

usb_modeswitch.conf - You will also need to download usb_modeswitch.conf the latest configuration file for usb_modeswitch.

wvdial - You will need a ppp dialing program that support ppp/chap, so download and install.


Step to making your Huawei E160 connect on you Linux systems

Step 1 - Plugin the Huawei E160 modem and After downloading usb_modeswitch.tar.bz you will need to extract the package and install.

$ tar -xjvf usb_modeswitch-0.9.7.tar.bz2
$ cd usb_modesswitch-0.9.7

Now to install, you can do

$ gcc -l usb -o usb_modeswitch usb_modeswitch.c
$ cp usb_modeswitch /usr/local/bin/usb_modeswitch

or install using ( this one works for me as well)

$ make install

Step 2 - Now that you have installed usb_modeswitch its time to configure it, first we copy the usb_modeswitch.conf file we downloaded

$ cp usb_modeswitch.conf /etc/

then we need to edit usb_modeswitch.conf using a text editor, look for "Huawei E220" then edit it to make it look like the text or screenshot below

# Huawei E220 (aka “Vodafone EasyBox II”, aka “T-Mobile wnw Box Micro”)
# Huawei E270
# Huawei E870
# and probably most other Huawei devices (just adapt product ID)
#
# Two options: 1. removal of “usb-storage” 2. the special control
# message found by Miroslav Bobovsky
#
# Contributor: Hans Kurent, Denis Sutter

DefaultVendor= 0×12d1;
DefaultProduct= 0×1003

# choose one of these:
;DetachStorageOnly=1
HuaweiMode=1

e160













After configuring that save then run usb_modeswitch

$ usb_modeswitch

Then your done with usb_modeswitch

Step 3 - I you haven't install wvdial you need to install it now then run wvdialconf if you have configured usb_modeswitch correctly and run usb_modeswitch wvdial will be able to detect your Huawei E160 modem.

$ wvdialconf

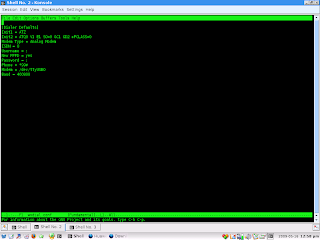

After running the above command, you will need to edit /etc/wvdial.conf make sure it look like the screenshot below, put ";" on username and password if its supposed to be blank as wvdial doesn't allow blank username and password.

huawei e160 modem













Once changes hav been made just save the file and then run wvdial.

$ wvdial

If configured properly it should start to connect like the screenshot below

3g modem













NOTE: During the waiting for prompt part, be patient as it is establishing connection, once it says its connected try to ping google.com

e160 3g modem














Then your done, the configuration for the wvdial is for Sun broadband, if your using other provider service, you will need to change it to your providers details.

NOTE: Everytime you unplugged and plug your Huawei E160 Modem you will need to run "usb_modeswitch" before running "wvdial", I suggest creating a bash/sh connection script something like the one below, just hit ctrl+c to disconnect.

------------------------------
#!/bin/bash
/usr/sbin/usb_modeswitch
sleep 30
wvdial
------------------------------
